Electric winch 13000 lbs (5897 kg), 12V, 26 m synthetic rope, wireless and wired remote control, 150:1 gear ratio, EMD Winch

RRP price: 1.90000 Lei
1.80000 Lei (VAT included) 1.86000 Lei în limita stocului disponibil
shipping cost is not included
In stock
Livrare estimată: 1-2 zile lucrătoare
Product code EMDW-007
Cumpără în rate de la 10000 Lei / lună (18 rate fără dobândă, cu cardul BT Star)
Not sure if it's the right choice? Ask an eMudding specialist for advice!
Call us: +40724308632
(Monday - Friday, 8:30 - 16:30)
Request details by email
Technical consultancy

Poți achita cu cardul de cumpărături până la 6 rate egale, fără dobândă.

payment options image
Buy now, pay later from RON 40.28 / Month Details here

Similar Products

Frequently bought together

Description

EMD Winch 13000lbs (5897kg) 12V Electric Winch, Synthetic Rope, 26m, 150:1 Gear Ratio

EMD Winch – for when you want to be prepared, not surprised.

The EMD Winch 13,000 lbs with a 150:1 ratio is the top-of-the-line model for reliability and speed. Equipped with an ultra-powerful motor (6.6 horsepower) and an optimized gear ratio, this model is built to handle the most demanding off-road recovery scenarios while offering quiet and safe operation.

1. APPLICATION

This winch is engineered for the Heavy Duty Off-Road segment. It is the ideal choice for large-scale 4x4 vehicles, heavy SUVs, commercial emergency vehicles, and transport recovery trucks. The 150:1 ratio ensures a faster line speed, which is critical in competitions or professional applications where time is of the essence.

2. COMPONENT ANALYSIS

MOTOR AND ELECTRONICS

The 6.6 HP (4.9 kW) Series Wound motor delivers massive torque output. The system is protected by a 500A solenoid with IP67 certification, ensuring reliable performance even after temporary water submersion.

TRACTION SYSTEM

Equipped with a 9.5 mm x 26 m synthetic rope and an aluminum Hawse fairlead. Synthetic rope significantly reduces weight on the front axle and is much safer to handle compared to traditional steel wire rope.

3. TECHNICAL SPECIFICATIONS

Specification Value
Rated line pull 5,897 kg / 13,000 lbs
Motor 12V DC, 4.9 kW / 6.6 HP, Series Wound
Transmission 3-Stage Planetary
Gear ratio 150:1
Brake Automatic, 100% Load Holding
Solenoid 500A - IP67
Control Wired remote + Wireless remote
Rope Synthetic 9.5 mm x 26 m
Recommended battery Min. 650 CCA
Warranty 2 years

4. PERFORMANCE

Line Pull (kg / lbs) Line Speed (m/min / fpm) Current Draw (12V)
0 kg / 0 lbs 9.7 m/min / 31.8 fpm 75 A
1,814 kg / 4,000 lbs 6.6 m/min / 21.6 fpm 195 A
3,628 kg / 8,000 lbs 4.1 m/min / 13.4 fpm 291 A
5,897 kg / 13,000 lbs 2.3 m/min / 7.7 fpm 375 A

5. RATED LINE PULL BY LAYER

Layer Pulling Capacity (kg / lbs)
1 5,897 kg / 13,000 lbs
2 4,541 kg / 10,010 lbs
3 4,218 kg / 9,300 lbs
4 3,856 kg / 8,500 lbs

6. DIMENSIONS & PACKAGE CONTENTS

Winch dimensions: 535 x 163 x 168 mm

Mounting bolt pattern: 254 x 114.3 mm

Net weight: 26 kg

Gross weight: 28 kg

Package dimensions: 610 x 340 x 260 mm

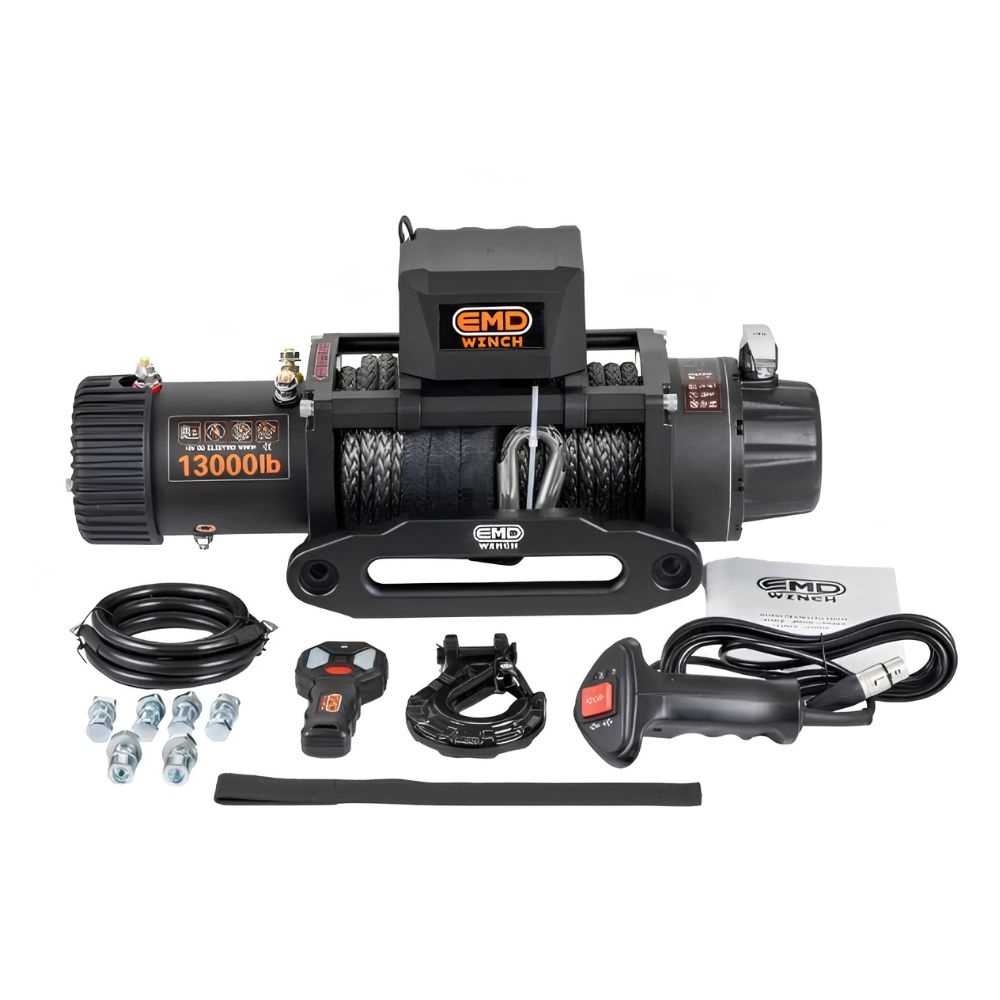

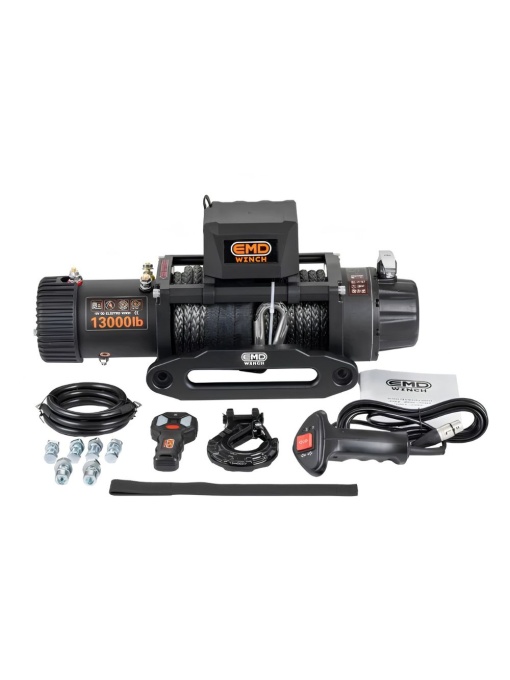

Package contents: Winch, aluminum Hawse fairlead, wired remote control, wireless remote control, synthetic rope, mounting hardware kit.

7. MAINTENANCE

After every use in mud or water, it is highly recommended to fully unspool the synthetic rope and rinse it with clean water to eliminate abrasive soil particles. Periodically inspect the battery terminals and ensure the integrity of the 20mm² electrical cable insulation.

8. SAFETY

  • Use the winch exclusively for pulling operations; never use it for vertical overhead hoisting or lifting of people.
  • Ensure the vehicle's battery is capable of delivering a minimum starting current of 650 CCA.
  • Always maintain a minimum of 5 full wraps of rope on the drum when operating under load.
EMD WINCH. Efficient. Powerful. Reliable.

Details

SKU
EMDW-007
Categories
Electric winches
Weight
28 kg
Brand
EMD Winch
Winches
Towing capacity
13000lbs (5897kg)
Cable type
Synthetic
Voltage
12V
Cable length
26 m
Transmission ratio
150:1
Culoare
Negru, Portocaliu
Color
black

Reviews

Do you own or have you used the product?
Submit review

Write your review and you will receive RON 10.00 loyalty points. Reviews that are not from real customers will not be published.

Brand

EMD Winch este un brand construit în jurul unui principiu clar: echipamente pe care te poți baza atunci când contează.

Proiectate pentru off-road, overlanding, utilizare utilitară sau activități precum vânătoarea, troliile EMD Winch oferă putere constantă, construcție solidă și funcționare sigură în condiții reale de utilizare. Fie că este vorba despre recuperarea unui vehicul, lucru în teren dificil sau situații neprevăzute, performanța rămâne stabilă și controlată.

Trolii EMD Winch: Eficiente. Puternice. Fiabile. Pentru momentele în care vrei să fii pregătit, nu surprins.
