Electric winch 13000 lbs (5897 kg), 12V, 26 m x 9.5 mm synthetic rope, wireless and wired remote control, 173:1 gear ratio, EMD Winch

[1]
RRP price: 1.80000 Lei
1.76000 Lei (VAT included)
shipping cost is not included
In stock
Livrare estimată: 1-2 zile lucrătoare
Product code EMDW-008
Cumpără în rate de la 9778 Lei / lună (18 rate fără dobândă, cu cardul BT Star)
Not sure if it's the right choice? Ask an eMudding specialist for advice!
Call us: +40724308632
(Monday - Friday, 8:30 - 16:30)
Request details by email
Technical consultancy

Poți achita cu cardul de cumpărături până la 6 rate egale, fără dobândă.

payment options image
Buy now, pay later from RON 39.42 / Month Details here

Similar Products

Frequently bought together

Description

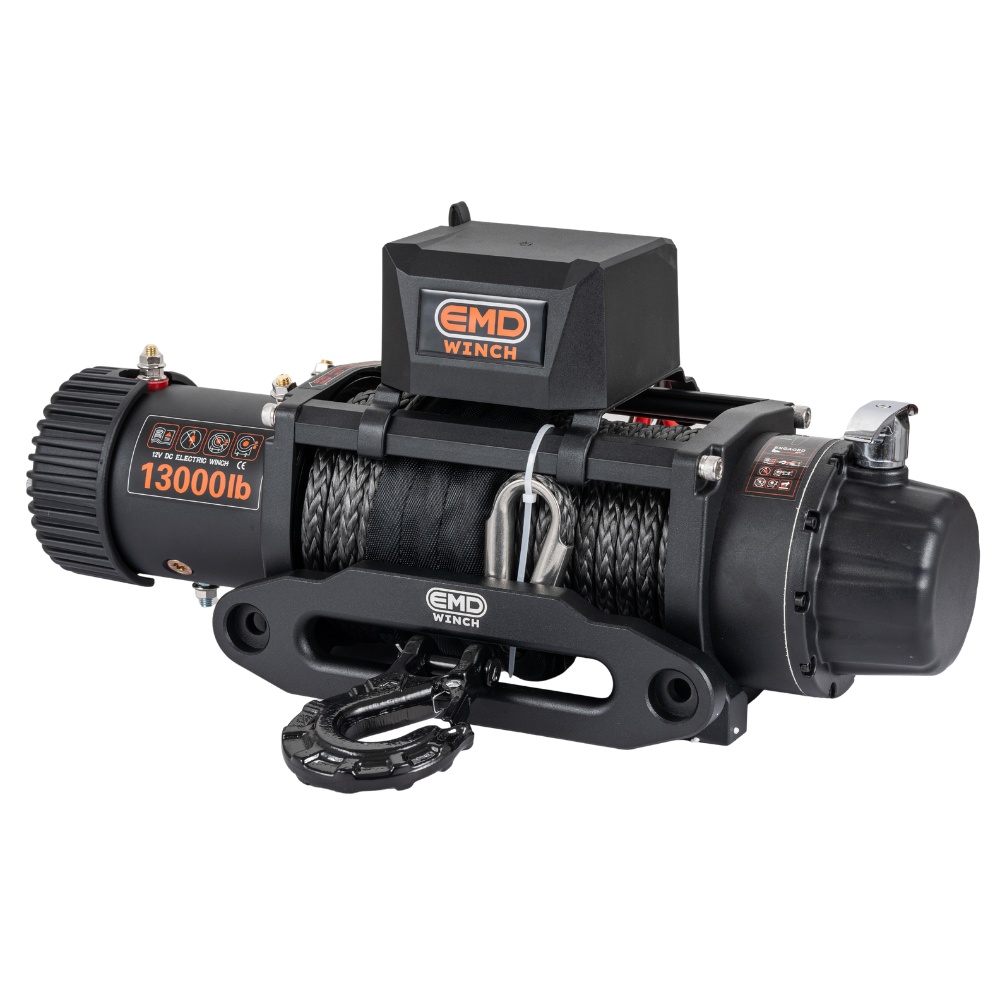

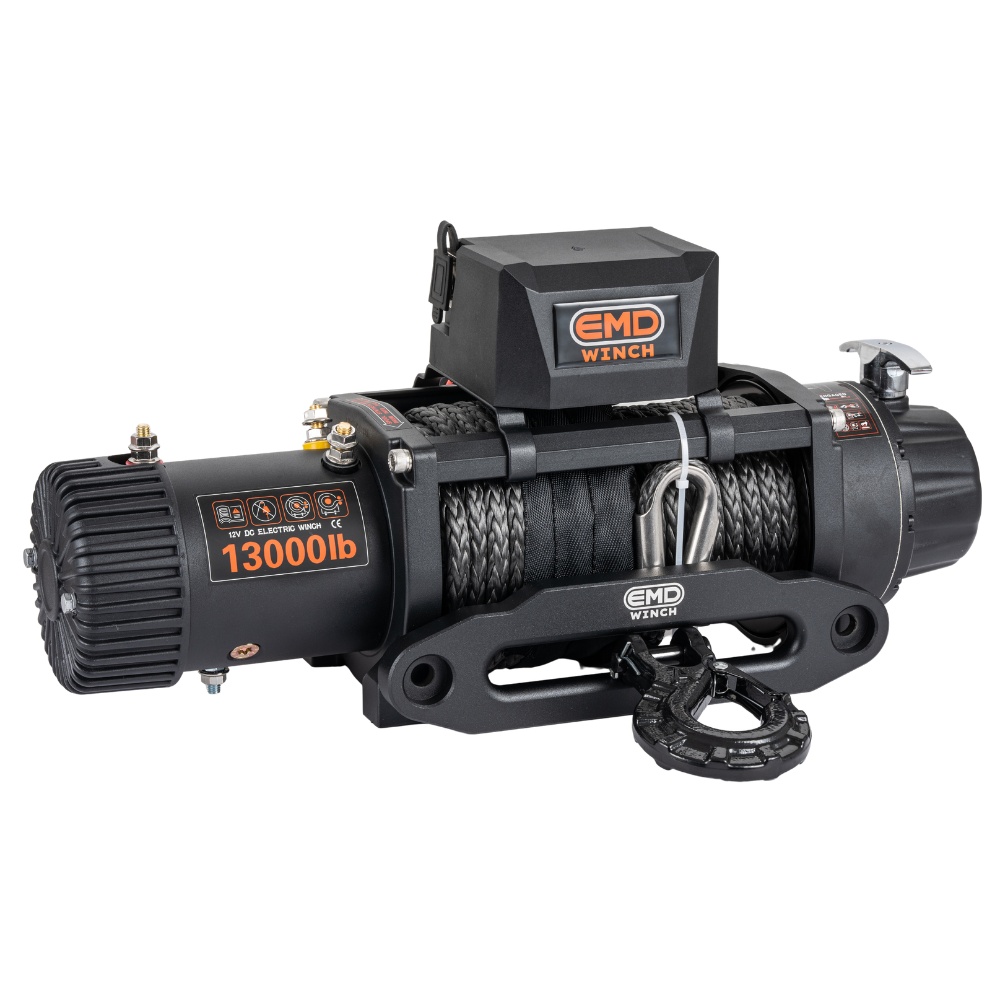

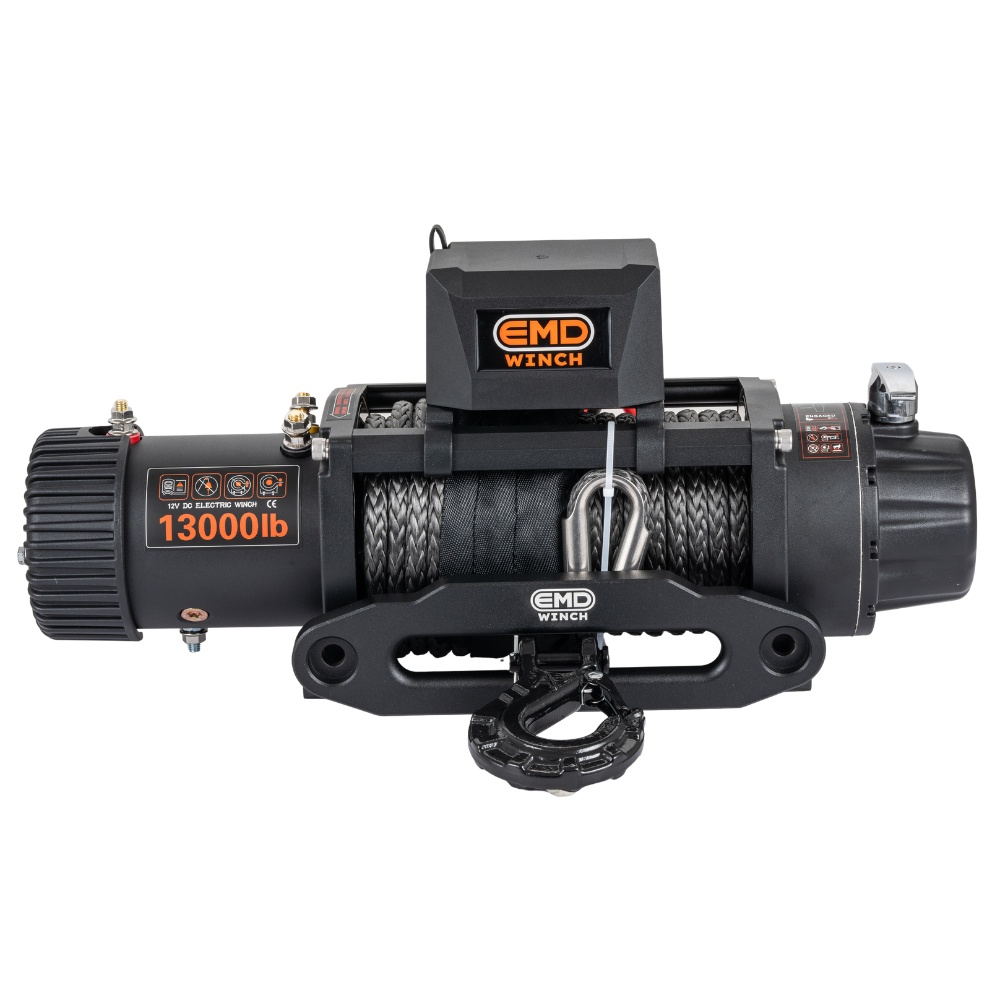

EMD Winch 13000lbs (5897kg) 12V Electric Winch, Synthetic Rope 26 m x 9.5 mm, 173:1 Gear Ratio

EMD Winch – for when you want to be prepared, not surprised.

Engineered for real-world scenarios where reliability is non-negotiable. The EMD 13000 model is a dependable partner, field-tested to withstand the extreme mechanical stress encountered in challenging off-road conditions, delivering a perfect balance of speed, torque, and passive safety.

1. APPLICATION

This winch is dedicated to the Heavy Duty Off-Road and Utility segment. It is the optimal solution for:

  • SUVs: Nissan Patrol (Y60, Y61, Y62), Toyota Land Cruiser, Mitsubishi Pajero, Jeep Wrangler JKU/JLU, Land Rover Defender.
  • Recovery Platforms & Vans: Iveco Daily, Mercedes Sprinter, Ford Transit, Ford Ranger, Volkswagen Amarok, Toyota Hilux, Isuzu D-Max.
  • Emergency Services: Assistance and recovery vehicles that require high operational speeds under load.

2. COMPONENT ANALYSIS

MOTOR AND ELECTRONICS

The 4.8 kW (6.6 HP) Series Wound motor provides massive instantaneous torque. Control is managed by a sealed 500A (IP67) solenoid, highly resistant to water and mud, equipped with a dual control system: a long-range wireless remote and a wired remote.

SYNTHETIC ROPE (PLASMA)

The use of a premium 9.5 mm UHMWPE synthetic plasma rope eliminates the risk of dangerous kinetic kickback in the event of failure and reduces the overall weight on the front axle. It is guided through an anodized aluminum fairlead to minimize friction.

3. TECHNICAL SPECIFICATIONS

Specification Value
Rated line pull 5,897 kg / 13,000 lbs
Motor 12V DC, 4.8 kW / 6.6 HP, Series Wound
Transmission 3-Stage Planetary Gear
Gear ratio 173:1
Brake Automatic Load-Holding
Rope (Plasma) Synthetic UHMWPE 9.5 mm x 26 m
Recommended battery Min. 70-80 Ah (650 CCA)
Warranty 2 years

4. PERFORMANCE

Line Pull Line Speed Current Draw
0 kg 9.7 m/min 75 A
2,721 kg 5.4 m/min 240 A
5,897 kg 2.3 m/min 375 A

5. RATED LINE PULL BY LAYER

Layer Pulling Capacity
1 5,897 kg
2 4,541 kg
3 4,218 kg
4 3,856 kg

6. DIMENSIONS & PACKAGE CONTENTS

Dimensions: 535 x 163 x 168 mm | Mounting Pattern: 254 x 114.3 mm | Weight: 28 kg

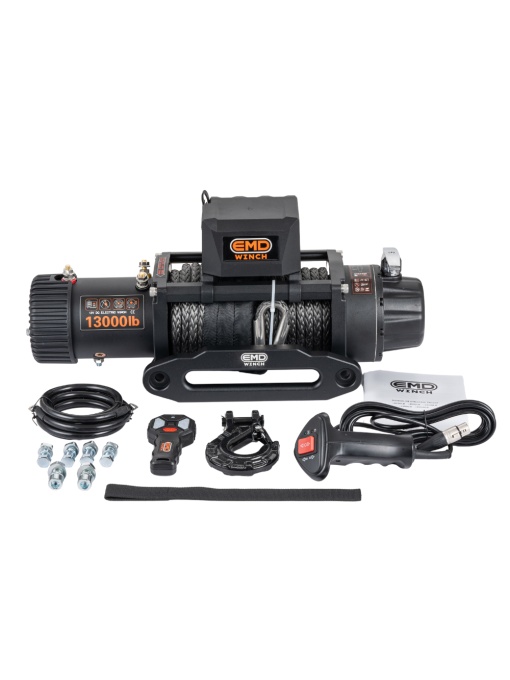

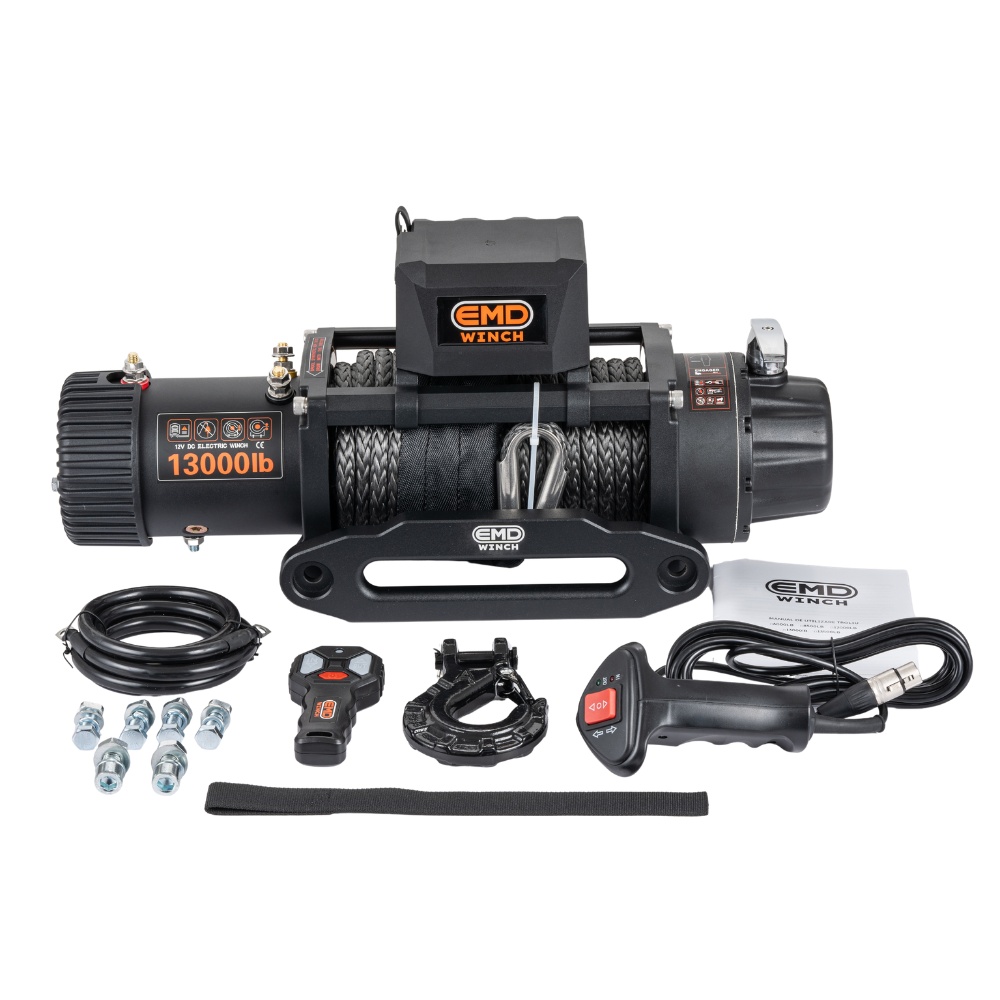

Package contents: EMD 13000 Winch, 500A HD Solenoid, Synthetic Rope, Wireless + Wired Remotes, Aluminum Hawse Fairlead, Hook, Wiring Harness, User Manual.

7. MAINTENANCE & SAFETY

Always operate the winch with the vehicle's engine running to ensure optimal voltage. After exposure to mud or silt, rinse the synthetic rope thoroughly with clean water. Periodically inspect all electrical connections and battery terminals.

  • Do not use the winch for vertical lifting or hoisting operations. Always maintain a minimum of 5 full wraps of rope on the drum under load.
  • Never engage or disengage the clutch while the winch motor is running. Using a winch blanket (cable damper) during operations is highly recommended.
EMD WINCH. Efficient. Powerful. Reliable.
