Electric winch 8500 lbs (3856 kg), 12V, 24 m synthetic rope, 150:1 gear ratio, EMD Winch

RRP price: 1.65000 Lei
1.54000 Lei (VAT included)
shipping cost is not included
In stock
Livrare estimată: 1-2 zile lucrătoare
Product code EMDW-005
Cumpără în rate de la 8556 Lei / lună (18 rate fără dobândă, cu cardul BT Star)
Not sure if it's the right choice? Ask an eMudding specialist for advice!
Call us: +40724308632
(Monday - Friday, 8:30 - 16:30)
Request details by email
Technical consultancy

Poți achita cu cardul de cumpărături până la 6 rate egale, fără dobândă.

payment options image
Buy now, pay later from RON 34.69 / Month Details here

Similar Products

Frequently bought together

Description

EMD Winch 8500lbs (3856kg) 12V Electric Winch, Synthetic Rope, 24m, 150:1 Gear Ratio

EMD Winch – for when you want to be prepared, not surprised.

The EMD Winch 8500 lbs electric winch is widely recognized for its reliability and low operational noise level. Equipped with an automatic brake capable of holding 100% of the load, this model is engineered for rapid performance and complete safety.

APPLICATION

This winch is ideal for mid-sized off-road vehicles, SUVs, and emergency response utility vehicles. Thanks to its 150:1 gear ratio, it delivers superior recovery speeds compared to standard winches, making it perfect for users who demand maximum efficiency in challenging terrain conditions.

COMPONENT ANALYSIS

MOTOR AND ELECTRONICS

Features a sealed Series Wound motor, powered by 12V DC, and a high-performance 500A (IP67) solenoid. The electronic system offers dual control functionality: via wired connection or wireless (wireless remote control included).

ROPE AND ACCESSORIES

Equipped with a 9 mm x 24 m synthetic rope, which reduces overall weight and eliminates the risk of injury from frayed or broken wire strands. The package includes an aluminum Hawse fairlead specifically designed to protect the synthetic line.

TECHNICAL SPECIFICATIONS

Specification Value
Rated line pull 3,856 kg / 8,500 lbs
Motor 12V DC, Sealed Series Wound
Transmission 3-Stage Planetary
Gear ratio 150:1
Brake Automatic, 100% Load Holding
Solenoid 500A - IP67
Control Wired remote + Wireless remote
Rope included Synthetic 9 mm x 24 m
Recommended battery Min. 650 CCA (70-80 AH)
Warranty 2 years

PERFORMANCE

Line Pull (kg / lbs) Line Speed (m/min / fpm) Current Draw (12V)
0 kg / 0 lbs 8.7 m/min / 28.5 fpm 75 A
907 kg / 2,000 lbs 6.3 m/min / 20.7 fpm 95 A
1,814 kg / 4,000 lbs 5.4 m/min / 17.0 fpm 195 A
2,721 kg / 6,000 lbs 4.2 m/min / 13.8 fpm 240 A
3,856 kg / 8,500 lbs 2.5 m/min / 8.3 fpm 310 A

RATED LINE PULL BY LAYER

Layer Pulling Capacity (kg / lbs)
1 3,856 kg / 8,500 lbs
2 2,948 kg / 6,500 lbs
3 2,495 kg / 5,500 lbs
4 2,177 kg / 4,800 lbs

DIMENSIONS & PACKAGE CONTENTS

Winch dimensions: 535 x 163 x 168 mm

Mounting bolt pattern: 254 x 114.3 mm

Net weight: 25 kg

Gross weight: 27 kg

Package dimensions: 610 x 340 x 260 mm

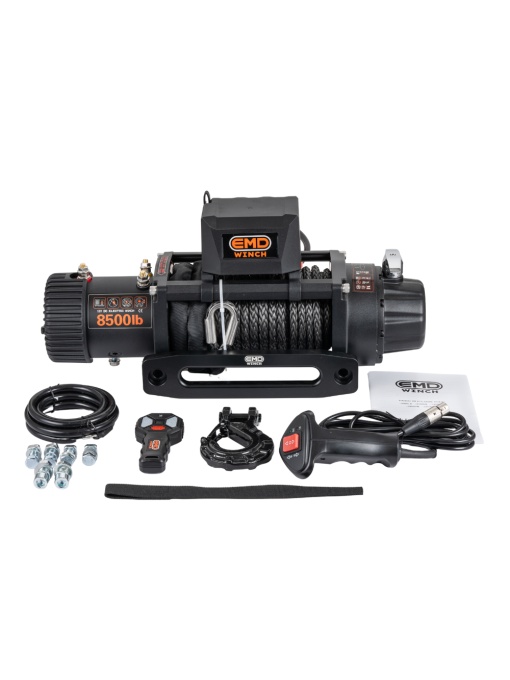

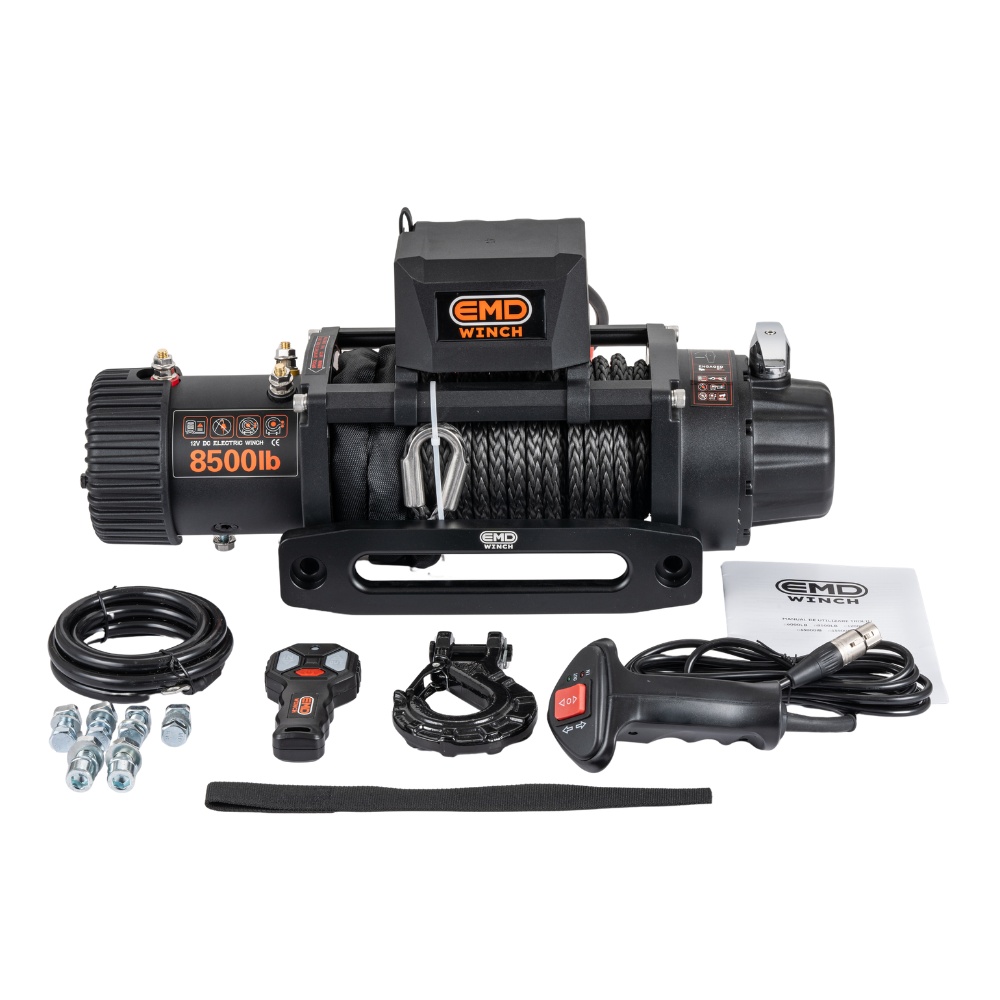

Package contents: Winch, Hawse fairlead, wired remote control, wireless remote control, synthetic rope, battery cables (1.83 m).

MAINTENANCE

Periodically inspect the synthetic rope for signs of wear, fraying, or cuts. After use in mud or saltwater, rinse the rope thoroughly with fresh water to prevent the accumulation of abrasive debris within the fibers. Check the tightness of the battery connections to prevent voltage drops.

SAFETY

  • This winch is designed exclusively for pulling. Do not use it for hoisting or vertical overhead lifting of people or loads.
  • Adhere to the minimum 650 CCA battery requirement to ensure stable operation of the Series Wound motor.
  • Do not exceed rated loads and allow the motor to cool down during extended pulling sessions under full load.
EMD WINCH. Efficient. Powerful. Reliable.

Details

SKU
EMDW-005
Categories
Electric winches
Weight
27 kg
Brand
EMD Winch
Winches
Towing capacity
8500lbs (3855kg)
Cable type
Synthetic
Voltage
12V
Cable length
24 m
Color
black
