Electric vehicle winch 13500 lbs (6123 kg), 12V, 25 m synthetic rope, 150:1 gear ratio, EMD Winch

RRP price: 1.99000 Lei
1.95000 Lei (VAT included) 1.99000 Lei în limita stocului disponibil
shipping cost is not included
In stock
Livrare estimată: 1-2 zile lucrătoare
Product code EMDW-009
Cumpără în rate de la 10833 Lei / lună (18 rate fără dobândă, cu cardul BT Star)
Not sure if it's the right choice? Ask an eMudding specialist for advice!
Call us: +40724308632
(Monday - Friday, 8:30 - 16:30)
Request details by email
Technical consultancy

Poți achita cu cardul de cumpărături până la 6 rate egale, fără dobândă.

payment options image
Buy now, pay later from RON 43.51 / Month Details here

Similar Products

Frequently bought together

Description

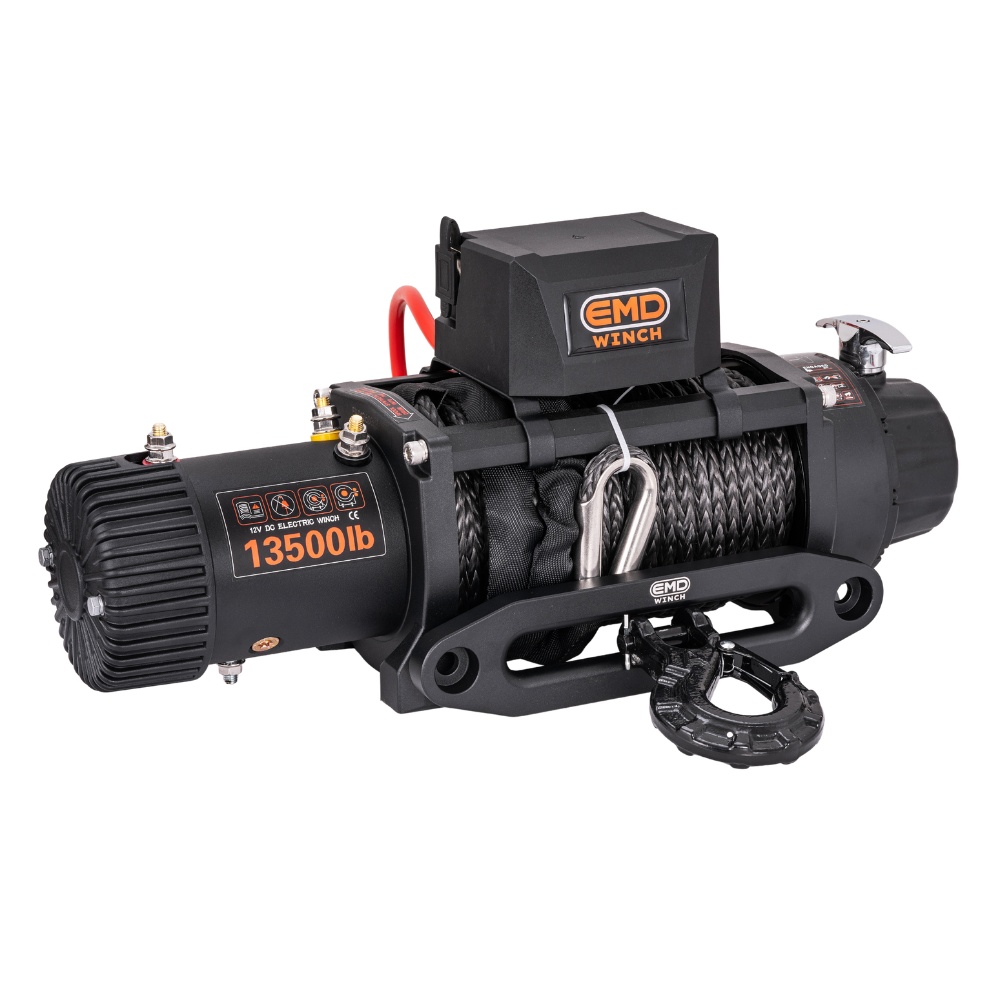

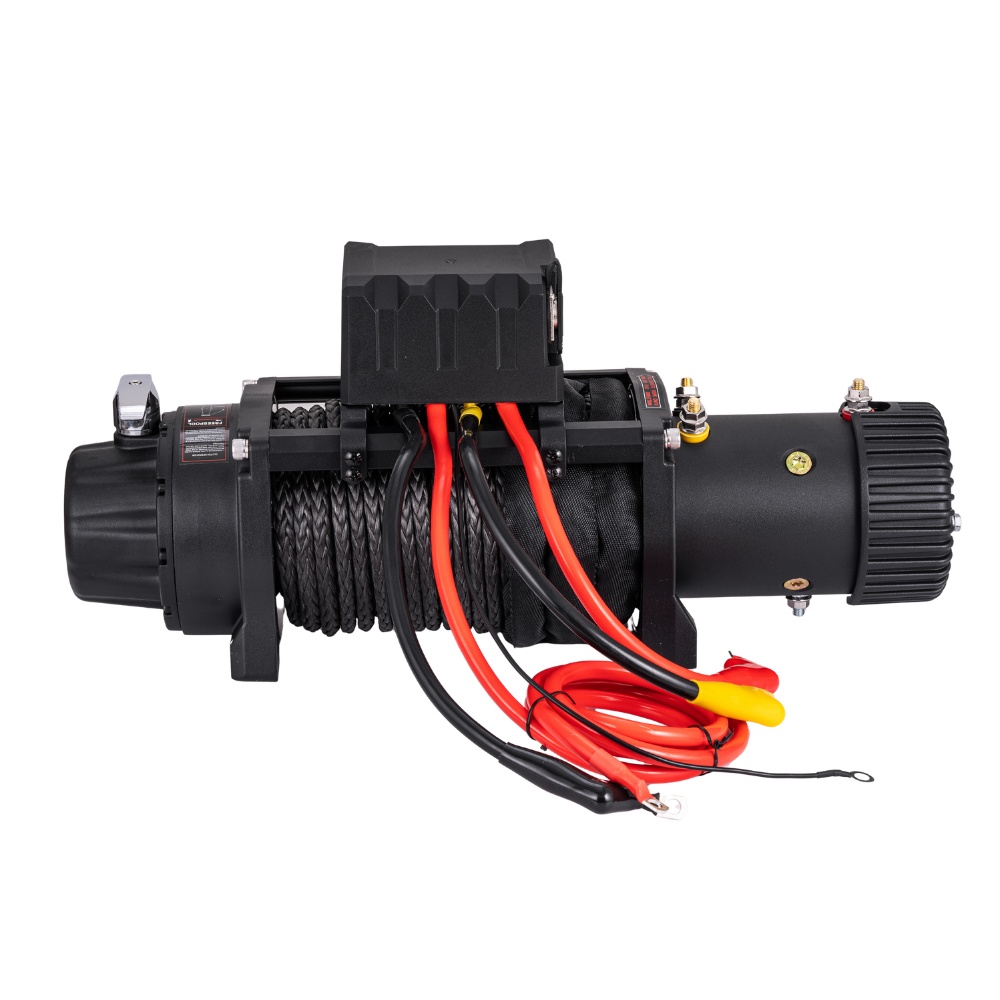

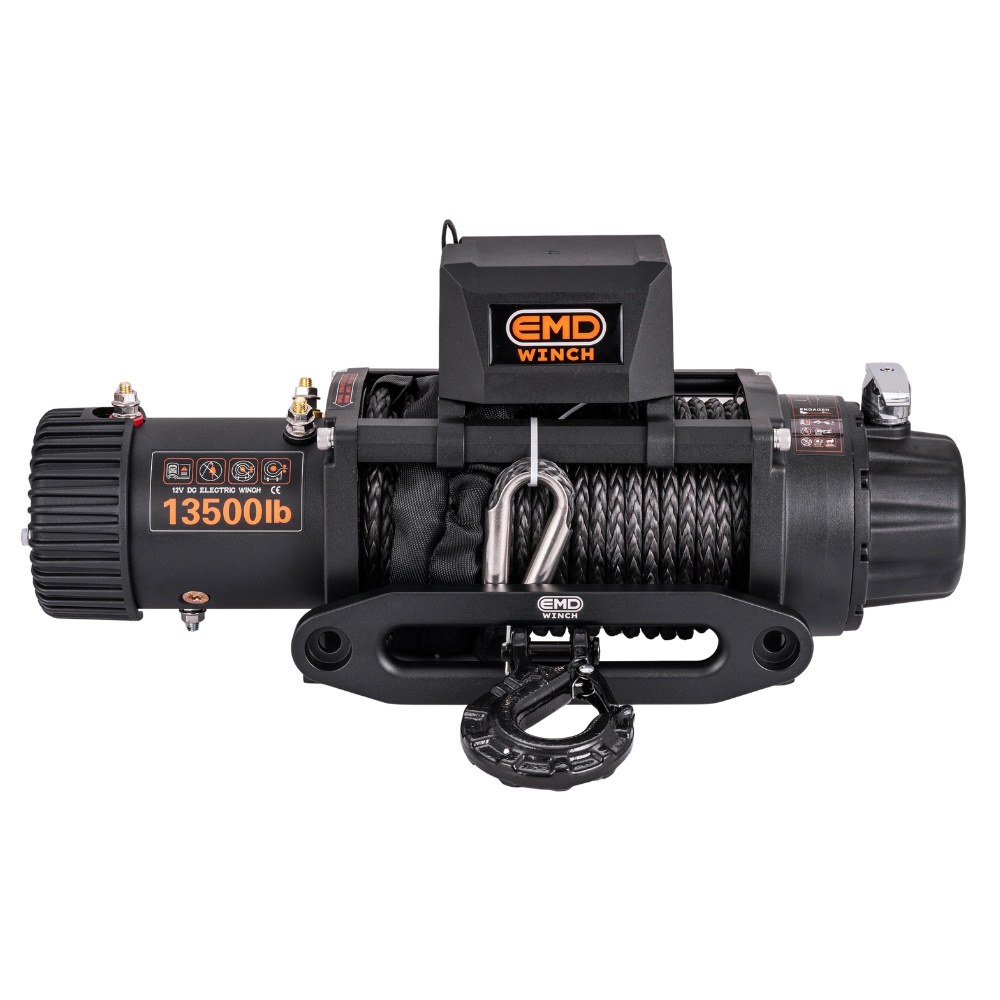

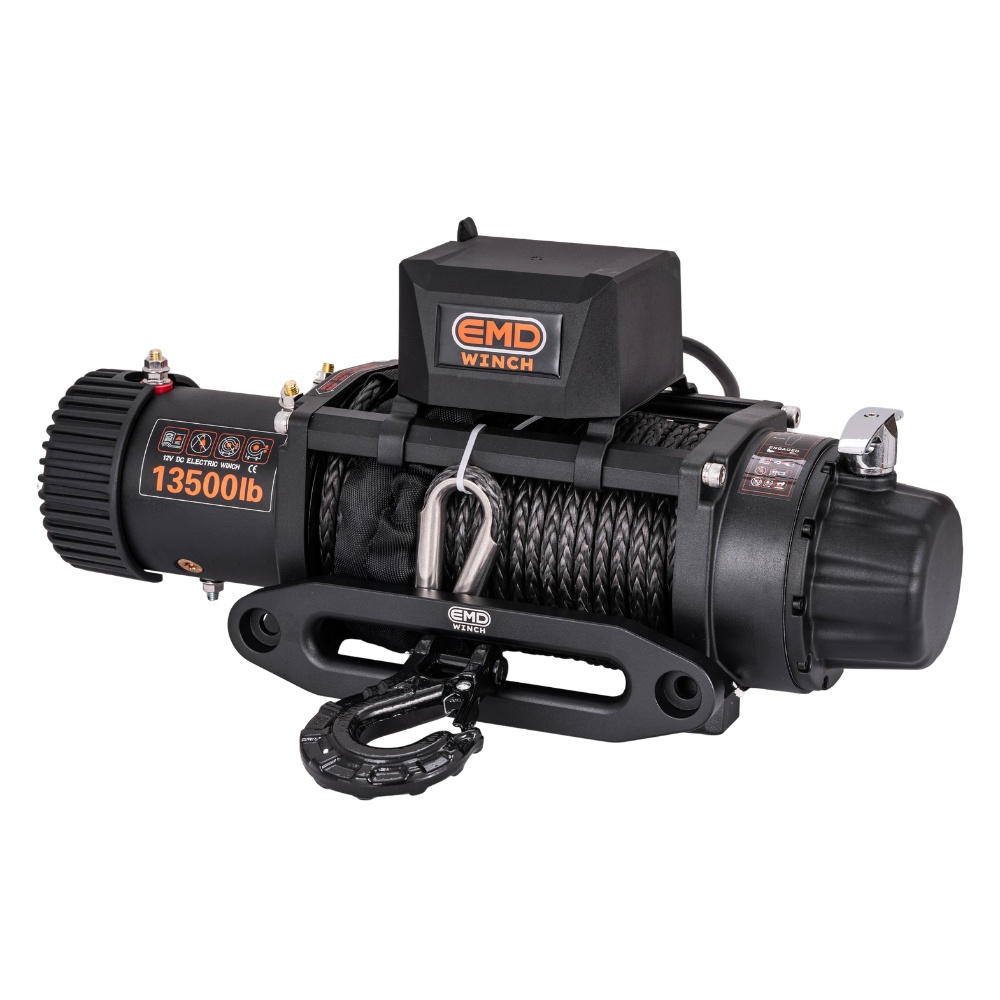

EMD Winch 13500lbs (6123kg) 12V Heavy Duty Electric Winch, Synthetic Rope, 25m, 150:1 Gear Ratio

EMD Winch – for when you want to be prepared, not surprised.

The EMD Winch 13,500 lbs is recognized for its extreme reliability and low operational noise level. It is engineered for real-world scenarios where failure is not an option. Equipped with an automatic brake capable of holding 100% of the load and an ultra-powerful motor, this 13,500 lbs model is built for fast, safe recoveries in the most demanding terrain conditions.

1. APPLICATION

This winch is intended for the Heavy Duty Off-Road and Professional segment. It is the ideal solution for large-scale 4x4 vehicles, heavy SUVs, commercial emergency vehicles, and transport platforms. The 150:1 gear ratio provides superior line speed, making it essential for users who need maximum efficiency under heavy loads.

2. COMPONENT ANALYSIS

MOTOR AND ELECTRONICS

The 6.6 HP (4.9 kW) Series Wound motor is fully sealed, delivering impressive torque output. The control system features a 500A solenoid with IP67 protection, resistant to water and dust, allowing operation in extreme weather conditions.

TRACTION SYSTEM

The 10 mm x 26 m synthetic rope provides enhanced safety and a significantly reduced weight. It is guided through an aluminum Hawse fairlead, minimizing fiber wear and ensuring precise spooling on the drum.

3. TECHNICAL SPECIFICATIONS

Specification Value
Rated line pull 6,123 kg / 13,500 lbs
Motor 12V DC, 4.9 kW / 6.6 HP, Sealed Series Wound
Transmission 3-Stage Planetary
Gear ratio 150:1
Brake Automatic, 100% Load Holding
Solenoid 500A - IP67
Control Wired remote + Wireless remote
Cable included Synthetic 10 mm x 26 m
Recommended battery Min. 650 CCA (70-80 Ah)
Warranty 2 years

4. PERFORMANCE

Line Pull (kg / lbs) Line Speed (m/min / fpm) Current Draw (12V)
0 kg / 0 lbs 9.7 m/min / 31.8 fpm 75 A
1,814 kg / 4,000 lbs 6.6 m/min / 21.6 fpm 195 A
3,628 kg / 8,000 lbs 4.1 m/min / 13.4 fpm 291 A
6,123 kg / 13,500 lbs 2.3 m/min / 7.5 fpm 375 A

5. RATED LINE PULL BY LAYER

Layer Pulling Capacity (kg / lbs)
1 6,124 kg / 13,500 lbs
2 4,541 kg / 10,010 lbs
3 4,218 kg / 9,300 lbs
4 3,856 kg / 8,500 lbs

6. DIMENSIONS & PACKAGE CONTENTS

Winch dimensions: 535 x 163 x 168 mm

Mounting bolt pattern: 254 x 114.3 mm

Weight: 26 kg (Net) / 28 kg (Gross)

Package dimensions: 610 x 340 x 260 mm

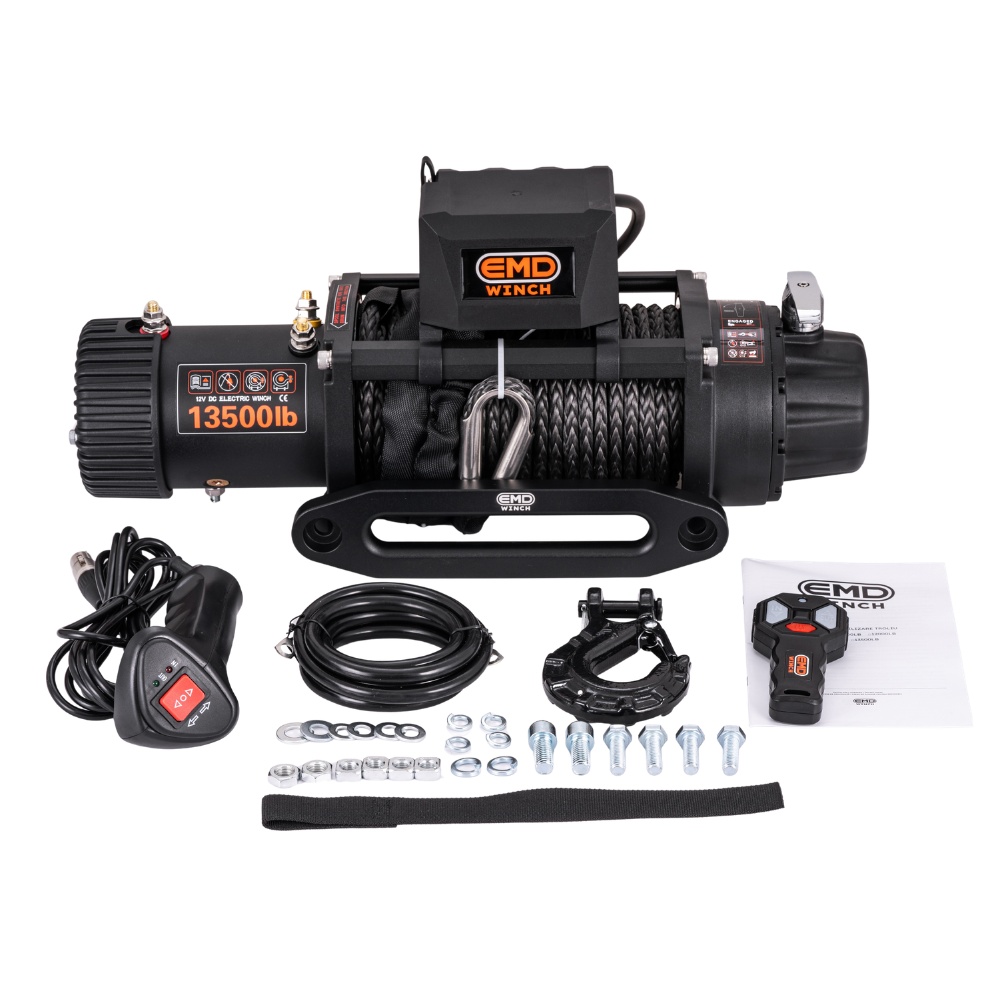

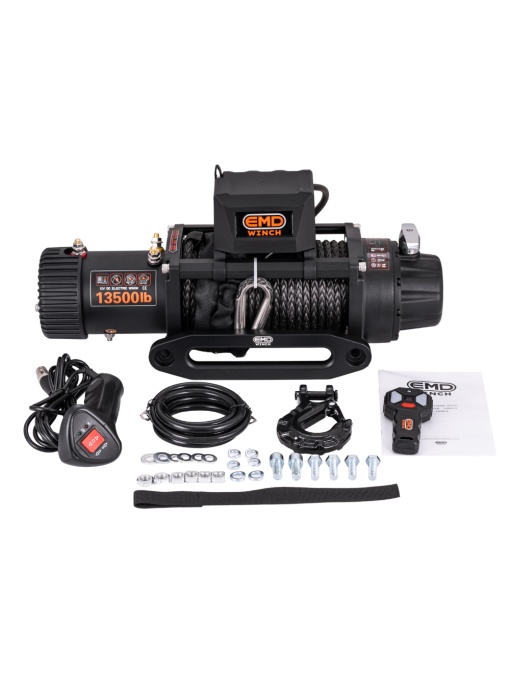

Package contents: Winch, aluminum Hawse fairlead, wired and wireless remote controls, synthetic rope, battery cables (1.83 m).

7. MAINTENANCE

The synthetic rope must be visually inspected before each use. After operating in muddy or sandy environments, fully unspool the rope and rinse it with clean water to prevent internal wear of the fibers. Periodically check the solenoid terminals to ensure optimal electrical conductivity.

8. SAFETY

  • Use the winch exclusively for towing operations, never for vertical lifting or overhead hoisting.
  • Ensure the vehicle's battery meets the minimum requirement of 650 CCA to sustain the maximum current draw of 375A.
  • Always maintain a minimum of 5 full wraps of rope on the drum when operating under load.
EMD WINCH. Efficient. Powerful. Reliable.

Details

SKU
EMDW-009
Categories
Electric winches
Weight
28 kg
Brand
EMD Winch
Winches
Towing capacity
13500lbs (6123kg)
Cable type
Synthetic
Voltage
12V
Cable length
25 m
Color
black
