Electric winch 4500 lbs (2041 kg), 12V, 15 m steel cable, 166:1 gear ratio, EMD Winch

80000 Lei (VAT included)
shipping cost is not included
In stock
Livrare estimată: 1-2 zile lucrătoare
Product code EMDW-003
Cumpără în rate de la 4444 Lei / lună (18 rate fără dobândă, cu cardul BT Star)
Not sure if it's the right choice? Ask an eMudding specialist for advice!
Call us: +40724308632
(Monday - Friday, 8:30 - 16:30)
Request details by email
Technical consultancy

Poți achita cu cardul de cumpărături până la 6 rate egale, fără dobândă.

payment options image
Buy now, pay later from RON 18.78 / Month Details here

Similar Products

Frequently bought together

Description

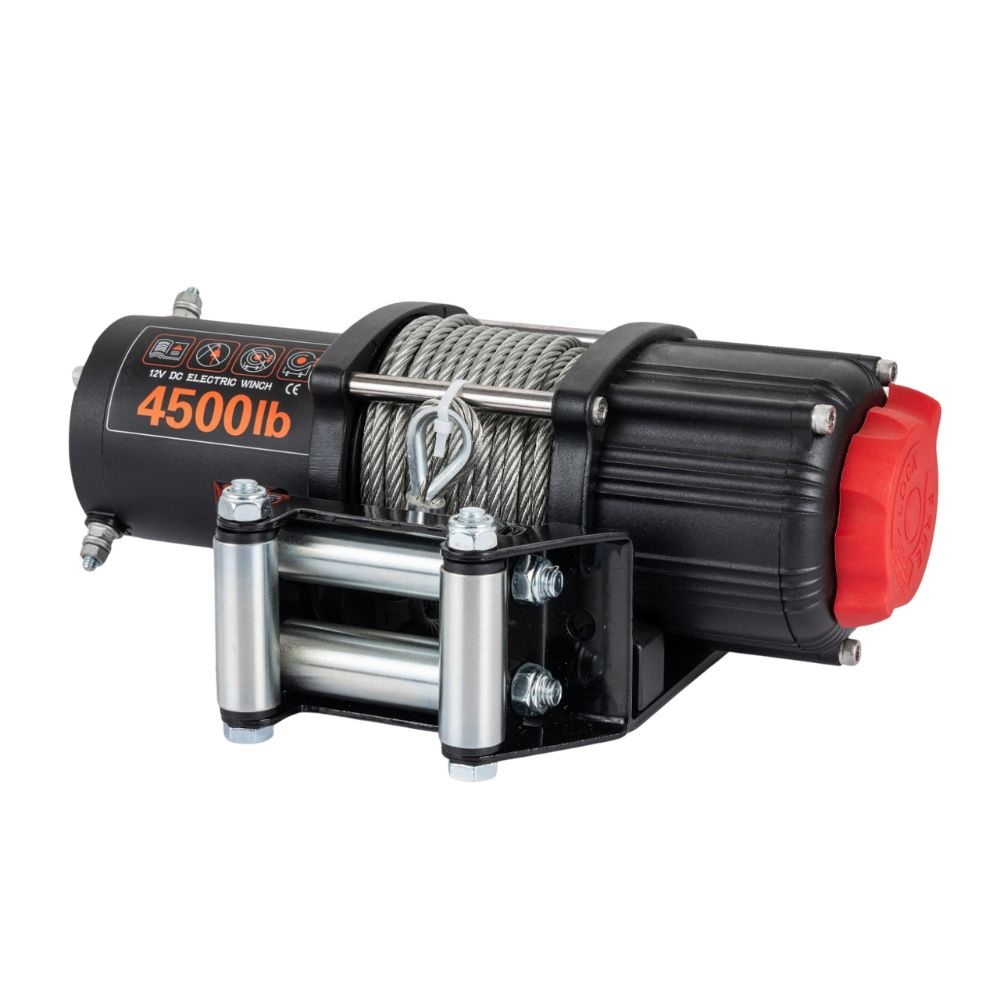

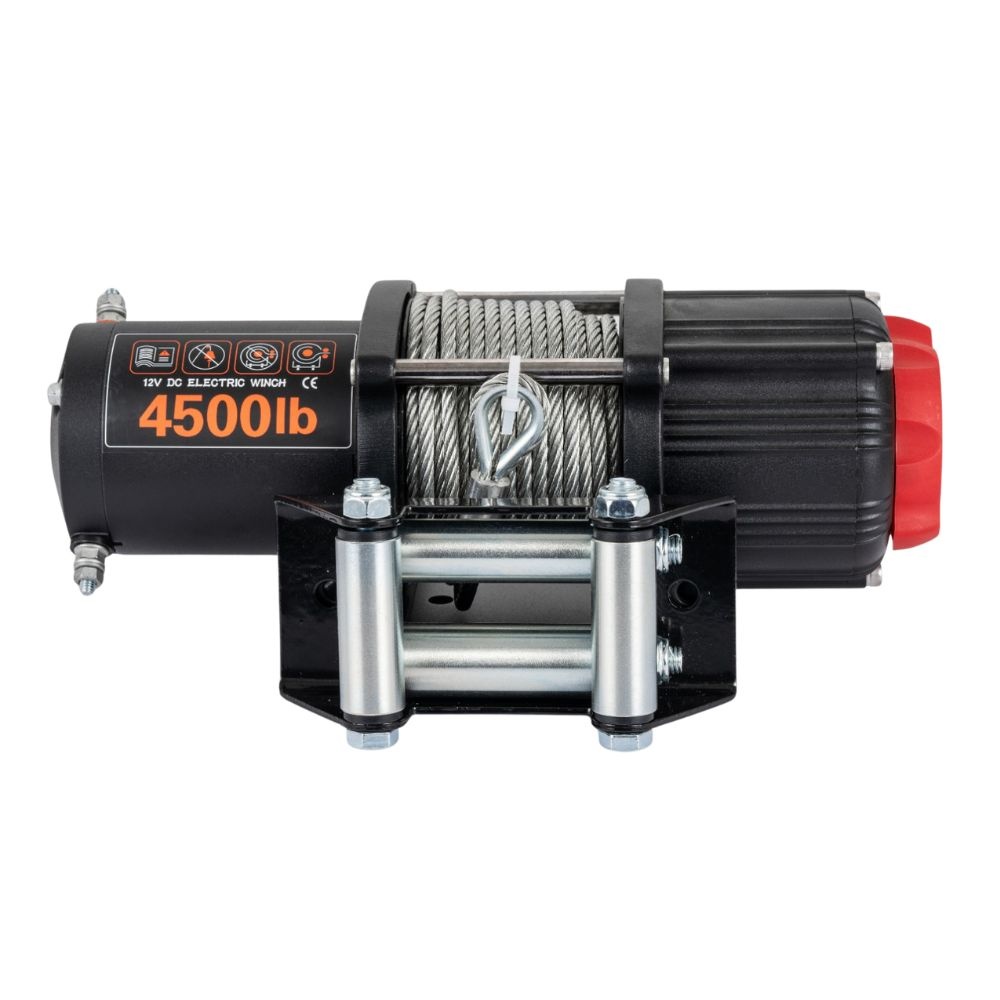

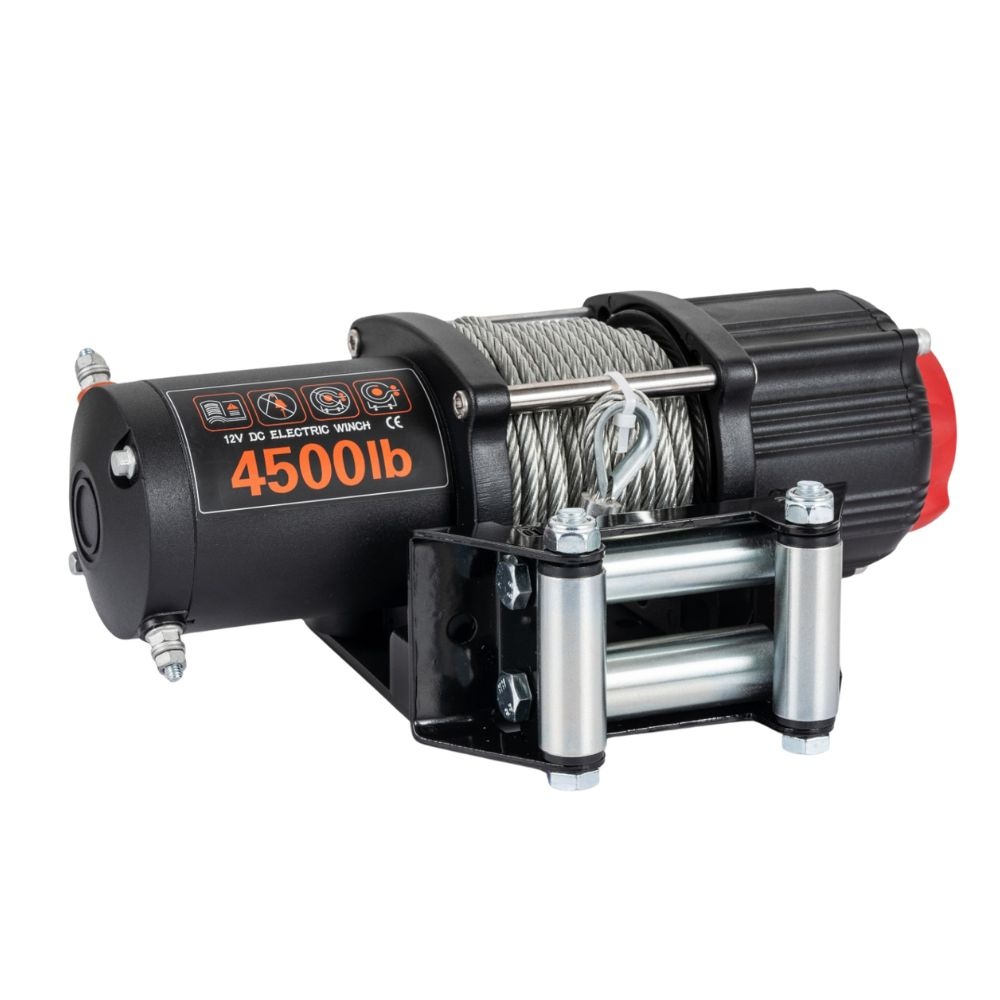

EMD Winch 4500lbs (2041kg) Electric Winch, 12V, 15m Steel Cable, 166:1 Gear Ratio

EMD Winch – for when you want to be prepared, not surprised.

The EMD Winch 4500lbs is designed with a 3-stage planetary gear system, making it highly reliable and stable. Additionally, it features an automatic in-drum brake to safeguard your vehicle during pulling operations.

APPLICATION

This winch is designed for the ATV / UTV / Quad segment. It is ideal for lightweight vehicles (such as the Suzuki Jimny or Samurai), small car haulers, boat trailers, and operating snow plows. The compact design allows for easy mounting on a wide range of dedicated brackets.

COMPONENT ANALYSIS

MOTOR AND TRANSMISSION

Equipped with a 3.5 HP (2.6 kW) permanent magnet motor and a 3-stage planetary transmission with a 166:1 ratio, this model delivers constant traction and efficient power consumption under load.

CABLE AND SOLENOID

Features a highly abrasion-resistant 5.5 mm x 15 m steel cable and a sealed 250A solenoid (IP67), guaranteeing consistent performance in demanding outdoor conditions.

TECHNICAL SPECIFICATIONS

Specification Value
Rated line pull 2,041 kg / 4,500 lbs
Motor 12V, 3.5 HP (2.6 kW), Permanent Magnet
Transmission 3-Stage Planetary
Gear ratio 166:1
Brake Mechanical spring brake (Automatic in-drum)
Solenoid 250A - IP67
Control Wired remote control (2 m)
Cable included Steel 5.5 mm x 15 m
Fairlead Roller Fairlead
Warranty 2 years

PERFORMANCE

Line Pull (kg / lbs) Line Speed (m/min / fpm) Current Draw (12V)
0 kg / 0 lbs 4.9 m/min / 16.0 fpm 15 A
454 kg / 1,000 lbs 3.2 m/min / 10.5 fpm 70 A
907 kg / 2,000 lbs 2.8 m/min / 9.2 fpm 105 A
1,360 kg / 3,000 lbs 2.2 m/min / 7.2 fpm 135 A
2,041 kg / 4,500 lbs 1.2 m/min / 3.9 fpm 210 A

RATED LINE PULL BY LAYER

Layer Pulling Capacity (kg / lbs)
1 2,041 kg / 4,500 lbs
2 1,463 kg / 3,225 lbs
3 1,225 kg / 2,700 lbs
4 1,055 kg / 2,325 lbs

DIMENSIONS & PACKAGE CONTENTS

Winch dimensions: 367 x 128 x 122 mm

Mounting bolt pattern: 164 x 76.2 mm

Gross weight: 16 kg

Package dimensions: 420 x 320 x 150 mm

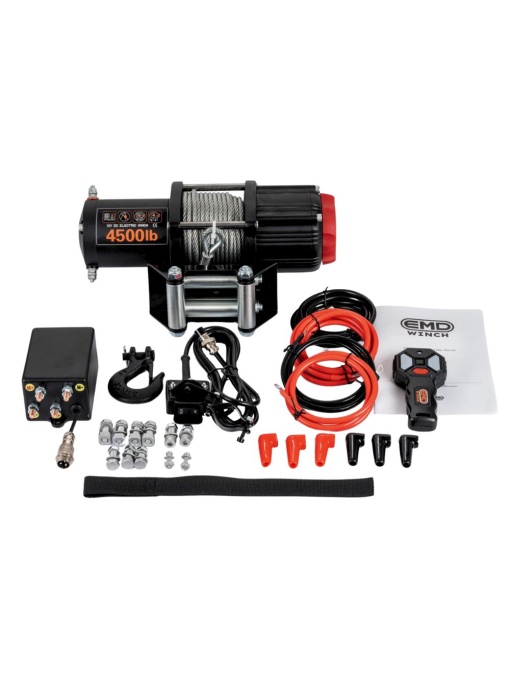

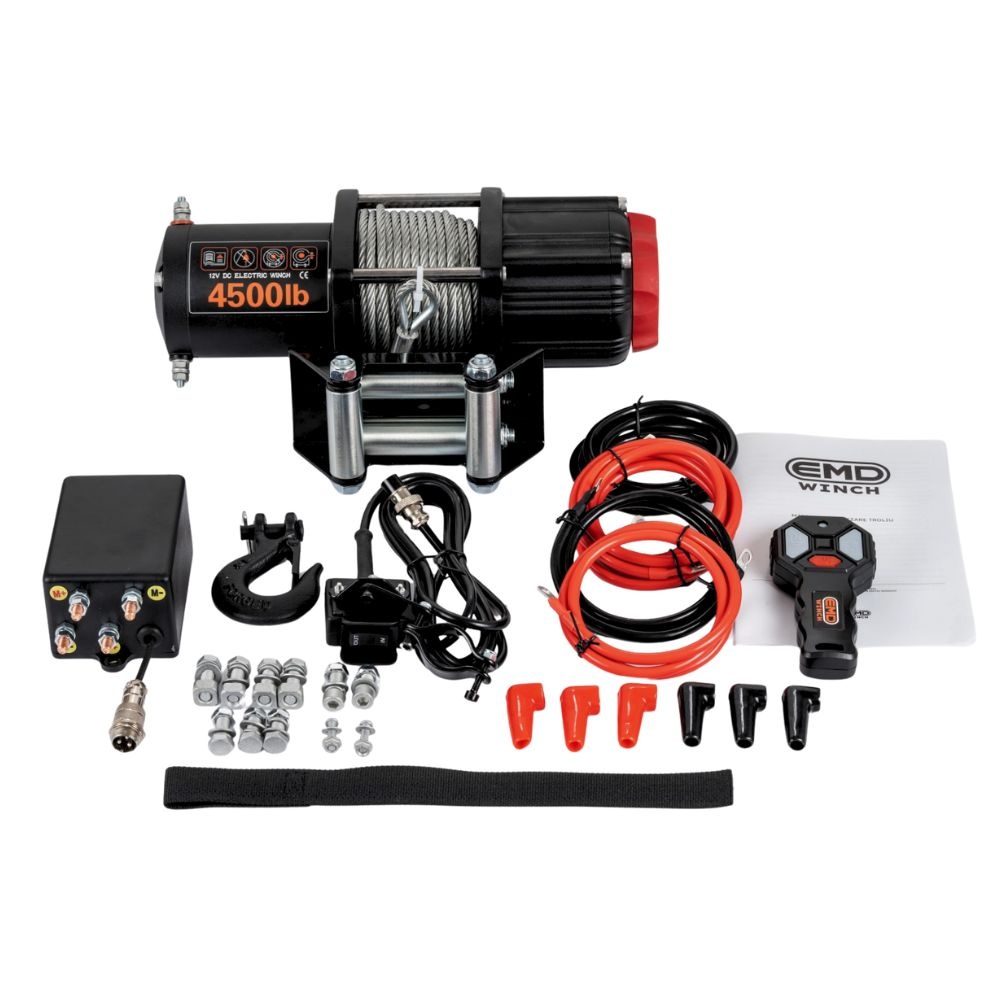

Package contents: Winch, roller fairlead, wired and wireless remote control, steel cable, mounting hardware.

MAINTENANCE

The steel cable must be periodically checked for signs of corrosion or broken strands and should be lubricated to extend its service life. Ensure that the battery terminals are clean and properly tightened to handle the high current draw.

SAFETY

  • Use the winch exclusively for pulling objects. Strictly prohibited: hoisting or overhead lifting of people or loads.
  • Always maintain at least 5 wraps of cable on the drum to prevent it from pulling loose under tension.
  • Wear protective gloves when handling the steel cable to avoid injury.
EMD WINCH. Efficient. Powerful. Reliable.
