Electric winch 4500 lbs (2041 kg), 12V, 12 m synthetic rope, 166:1 gear ratio, EMD Winch

85000 Lei (VAT included)
shipping cost is not included
In stock
Livrare estimată: 1-2 zile lucrătoare
Product code EMDW-002
Cumpără în rate de la 4722 Lei / lună (18 rate fără dobândă, cu cardul BT Star)
Not sure if it's the right choice? Ask an eMudding specialist for advice!
Call us: +40724308632
(Monday - Friday, 8:30 - 16:30)
Request details by email
Technical consultancy

Poți achita cu cardul de cumpărături până la 6 rate egale, fără dobândă.

payment options image
Buy now, pay later from RON 19.86 / Month Details here

Similar Products

Frequently bought together

Description

EMD Winch 4500lbs (2041kg) Electric Winch, 12V, 12m Synthetic Rope, 166:1 Gear Ratio

EMD Winch – for when you want to be prepared, not surprised.

The EMD WINCH 4500lbs is designed with a 3-stage planetary gear system, making it highly reliable and stable. Additionally, it features an automatic in-drum brake to safeguard your vehicle during pulling operations.

APPLICATION

This winch is designed for the ATV / UTV segment. It is ideal for lightweight vehicles, quads, boat trailers, or operating snow plows. The compact design allows for easy mounting on a wide range of dedicated brackets.

COMPONENT ANALYSIS

MOTOR AND TRANSMISSION

Equipped with a 3.5 HP permanent magnet motor and a 3-stage planetary transmission with a 166:1 ratio, this model delivers constant traction and efficient power consumption.

ROPE AND SOLENOID

Utilizes a heavy-duty 5.5 mm x 12 m synthetic rope (lightweight and safe to handle) and a 250A solenoid with IP67 protection, guaranteeing top performance even in wet conditions.

TECHNICAL SPECIFICATIONS

Specification Value
Rated line pull 2,041 kg / 4,500 lbs
Motor 3.5 HP, permanent magnet
Transmission 3-Stage Planetary
Gear ratio 166:1
Brake Mechanical spring brake
Clutch 92° rotation
Solenoid 250A - IP67
Control Wired remote control (2 m)
Rope Synthetic 5.5 mm x 12 m
Warranty 2 years

PERFORMANCE

Line Pull (kg / lbs) Line Speed (m/min / fpm) Current Draw (12V)
0 kg / 0 lbs 4.9 m/min / 16 fpm 15 A
454 kg / 1,000 lbs 3.2 m/min / 10.5 fpm 70 A
907 kg / 2,000 lbs 2.8 m/min / 9.2 fpm 105 A
1,360 kg / 3,000 lbs 2.2 m/min / 7.2 fpm 135 A
2,041 kg / 4,500 lbs 1.2 m/min / 3.9 fpm 210 A

RATED LINE PULL BY LAYER

Layer Pulling Capacity (kg / lbs)
1 2,041 kg / 4,500 lbs
2 1,463 kg / 3,225 lbs
3 1,225 kg / 2,700 lbs
4 1,055 kg / 2,325 lbs

DIMENSIONS & PACKAGE CONTENTS

Winch dimensions: 367 x 128 x 122 mm

Mounting bolt pattern: 164 x 76.2 mm

Net weight: 12.3 kg

Gross weight: 13.3 kg

Package dimensions: 420 x 320 x 150 mm

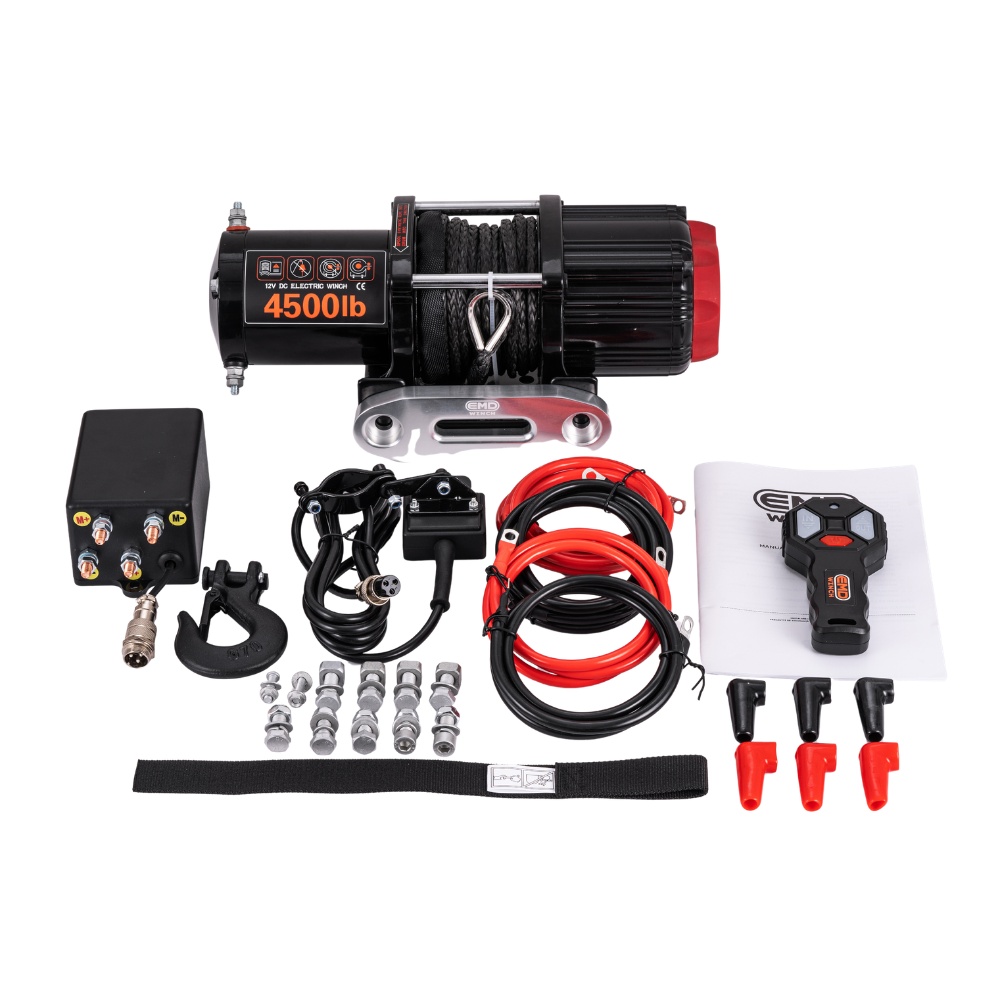

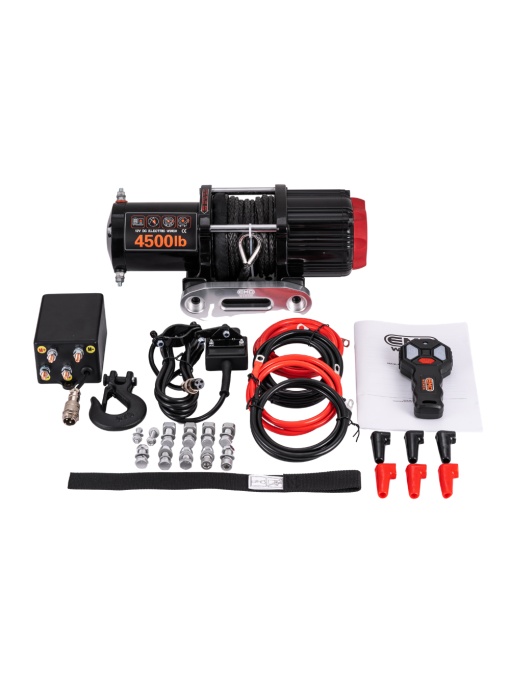

Package contents: Winch, aluminum hawse fairlead, wired and wireless remote control, synthetic rope, mounting hardware.

MAINTENANCE

Ensure that the vehicle's battery is in optimal condition to support a current draw of up to 210A under full load. Periodically inspect the synthetic rope for any signs of fraying, cuts, or abrasion.

SAFETY

  • This winch is designed exclusively for pulling objects. Do not use it for hoisting or lifting people.
  • Always maintain a safe distance from the line of the rope during operation.
  • Never leave the winch unattended while it is connected to a power source.
EMD WINCH. Efficient. Powerful. Reliable.
